Product Details:
|
| Name: | Universal Hot Line Clamp | Material: | H.D.G Steel |
|---|---|---|---|
| Application: | A | Weight: | 0.245KGS/ 0.33KGS |
| Standard Or Nonstandard: | Standard | Customade: | Available |
| Status: | New | Range: | Main: 0.414 - 0.128 Inch Tap: 0.438 - 0.128 |
| Highlight: | 0.128'' Pole Line Hardwares,0.438'' Pole Line Hardwares,S1520AGP universal clamp |
||
Overhead Connectors Powerline Hardware Universal Hot Line Clamp
Overview
Universal hot line clamp is a clamp for overhead hot line work in power lin application. It greatly facilitates connection and disconnection of a tap wire, with a high degree of safety and with the elimination of arcing when the connection is made or broken.
Feature
1- Brass and aluminum alloy castings offer high strength, corrosion-resistance and conductor compatibility
2-Extended jaw width means excellent conductor contact, reduced joint temperature, minimal conductor cold flow and reduced twisting of the conductor during installation
3-Spring loaded feature compensates for cold flow and offsets tightening torque vibrations
4-Forged eyebolts provide corrosion free strength and uniformed expansion under loading
5-The side positioned tap connection prevents possible corrosion of conductor or clamp on bimetal connections

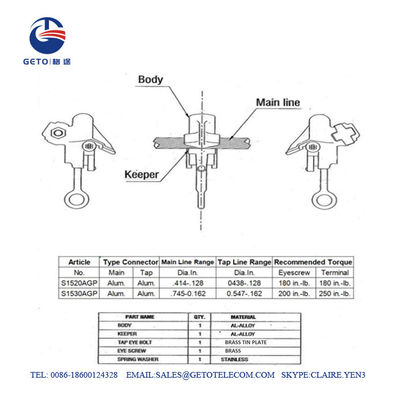

| Article | Tap of Connector | Main Line Range | Tap Line Range | Recommended Torque | ||
| No | Main | Tap | Diameter Inch | Diameter Inch | Eyescrew | Terminal |
| S1520APG | Al | Al | 0.414-0.128 | 0.438-0.128 | 180 in-lb. | 180 in.-lb. |
| S1530APG | Al | AL | 0.745-0.162 | 0.547-0.162 | 200 in.-lb. | 250 in.-lb. |
| Part Name | Qty | Material |
| Body | 1 | Al-alloy |
| Keeper | 1 | Al-alloy |
| Tap Eye Bolt | 1 | Brass tin plate |
| Eye Screw | 1 | Brass |
| Spring Washer | 1 | Stainless |
Application
